Novel triangle design with notches spreads greater area to the
bore wall and prevents patches from getting stuck inside the
bore. Patches are made from 175 mil cotton flannel that is
white (aka bleached) and napped. All flannel is USA made,
and it is soft and highly absorbent. Patented notches allow
patch to fit any jag/bore in the range listed for the patch.
Consumer eyes catch the patch shapes since they are visible
though the poly bags.
|
1/3 oz. sample bottle is attached to the side of the
slide pack using heavy duty 22-gauge wire ties.
Aluminum foil tape wraps around the wire tie and
bottle top.
Powerful solvent for removing by-products of
smokeless powder. It is non-toxic, and it contains
no petroleum or water.
|
Model
#
|
# Brushes and
Caliber
|
# of Patches
and Caliber
|
Bristles
|
Brush
Length
|
Package
Type
|
5673
|
1 @ 22 Cal
1 @ 30 Cal
1 @ 9 mm
1 @ 45 Cal
|
120 @ 22--27 Cal
160 @ 27--35 Cal
|
Phosphor
Bronze
|
2.5 inches
|
slide pack
with
staples
|
5682
|
1 @ 22 Cal
1 @ 30 Cal
1 @ 9 mm
1 @ 45 Cal
|
120 @ 22 --27Cal
160 @ 27--35 Cal
|
Nylon
|
2.5 inches
|
slide pack
with
staples
|
|
Model
#
|
Series Name
|
Contents of 3-Pack
|
1324
|
Metal Mix
|
1 stainless/ 1 phosphor w med stems, 1 stainless w small stem
|
1328
|
Metal Mix
|
1 stainless/ 2 phosphor, all w medium stems
|
1329
|
Metal Mix
|
1 stainless w medium stem, 2 phosphor w med/large stems
|
1342
|
Mix
|
1 phosphor/ 1 nylon w medium stems, 1 stainless w small stem
|
1758
|
Stainless Steel
|
3 stainless w small/med/large stems
|
1756
|
Phosphor Bronze
|
3 phosphor bronze w small/med/large stems
|
1357
|
Nylon
|
3 nylon w small/med/large stems
|
1392
|
Small
|
1 each of stainless/phosphor/nylon, all w small stems
|
1394
|
Medium
|
1 each of stainless/phosphor/nylon, all w medium stems
|
1723
|
Large
|
1 each of stainless/phosphor/nylon, all w large stems
|
|
Model
#
|
Bristle
Material
|
Stem
Size
|
Package
Type
|
#
Brushes
|
1538
|
stainless steel
|
small
|
poly bag
with
no label
|
10
|
1546
|
phosphor
bronze
|
1564
|
nylon
|
1130
|
stainless steel
|
medium
|
poly bag
with
no label
|
10
|
1142
|
phosphor
bronze
|
1163
|
nylon
|
1235
|
stainless steel
|
large
|
poly bag
with
no label
|
10
|
1246
|
phosphor
bronze
|
1267
|
nylon
|
|
3 pencil brushes in one pack are a "hot" seller at
gun stores and gun shows. Customers seeing
them know they will clean their firearms better.
Big savings with 4 brushes in one pack! Each brush has
two diameters, and the unique design makes each brush
capable of dual-purpose cleaning. The smaller diameter
holds a patch, while at the same time, the larger diameter
brushes the bore.
Innovative design gives two diameters to the brush. The
smaller diameter pushes the cotton patches tighter to the
bore wall than done by a sub-caliber brush or jag. At the
same time, the larger diameter brushes the bore wall.
Consumer eye is caught by triangular patches inside
triangular cavity of blister. Large artwork on the front
explains the Jag Brush tm.
Ten are packed in a poly bag. They may be unpacked to sell
individually in bins. Wood handles are hot stamped with
company information. Rigel was first to bring these to gun
market in 2005.
Stems are rigid treated-steel tubing, where the diameters are
as follows:
small stem diam = 1/16 inch;
med stem diam = 1/8 inch;
large stem diam = 1/4 inch.
Freedom is not free.
New Kit !
4 Jag Brushes TM for rods
with Triangle Patches TM
Utility Patents Pending in USA and other countries
|
|
|
New Kit !
1 Jag Brush TM for rods
with Triangle Patches TM
Utility Patents Pending in USA and other
countries
|
|
|

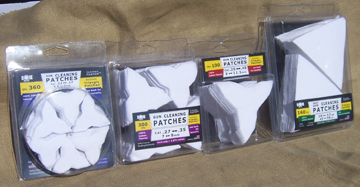

New !
Triangle Patches TM
regular poly bags
Patent Pending in USA and othe
countries
|
|
|
Angle Brushes TM
in 3-Packs
|
|
|
The people
at Rigel Products
thank
the men and women of
the United States
Armed Forces for
the brave sacrifices they
have made and
continue to make.
|
New !
Triangle Patches TM
bulk poly bags
Patent Pending in USA and other
countries
|
|
|
Model
#
|
Caliber
|
Thread
|
# of
Brushes
|
# of
Patches
|
Bristles
|
Brush
Length
|
Package
Type
|
5617 P
|
17, 4.85
|
5-40
|
2
|
960
|
Phosphor
Bronze
|
2.5 inches
|
slide pack
with
staples
|
5620 P
|
20, 5, 5.45
|
5-40
|
2
|
960
|
5622 P
|
22, 223, 5.56
|
8-32
|
2
|
520
|
5624 P
|
243, 6
|
8-32
|
2
|
520
|
5626 P
|
25, 6.5
|
8-32
|
2
|
520
|
5627 P
|
270, 7
|
8-32
|
2
|
520
|
5630 P
|
30, 7.62, 7.5
|
8-32
|
2
|
240
|
5633 P
|
338
|
8-32
|
2
|
240
|
5635 P
|
35, 9, 9.3
|
8-32
|
2
|
240
|
5637 P
|
375, 9.4
|
8-32
|
2
|
120
|
5640 P
|
40, 416
|
8-32
|
2
|
120
|
5645 P
|
44, 45, 11.2
|
8-32
|
2
|
120
|
5650 P
|
50, 500
|
8-32
|
2
|
120
|
5612 P
|
12 & 10
|
5/16-27
|
1
|
60
|
3.0 inches
|
5617 N
|
17, 4.85
|
5-40
|
2
|
960
|
Nylon
|
2.5 inches
|
slide pack
with
staples
|
5620 N
|
20, 5, 5.45
|
5-40
|
2
|
960
|
5622 N
|
22, 223, 5.56
|
8-32
|
2
|
520
|
5624 N
|
243, 6
|
8-32
|
2
|
520
|
5626 N
|
25, 6.5
|
8-32
|
2
|
520
|
5627 N
|
270, 7
|
8-32
|
2
|
520
|
5630 N
|
30, 7.62, 7.5
|
8-32
|
2
|
240
|
5633 N
|
338
|
8-32
|
2
|
240
|
5635 N
|
35, 9, 9.3
|
8-32
|
2
|
240
|
5637 N
|
375, 9.4
|
8-32
|
2
|
120
|
5640 N
|
40, 416
|
8-32
|
2
|
120
|
5645 N
|
44, 45, 11.2
|
8-32
|
2
|
120
|
5650 N
|
50, 500
|
8-32
|
2
|
120
|
|
The two radial diameters makes it a two-action
bore brush. The smaller diameter pushes the
cotton patches tighter to the bore wall than
done by a sub-caliber brush. At the same time,
the larger diameter brushes the bore wall.
Works with any patch shape.
The artwork on the front, to the right of the
brush, attracts the eye to the new concept.
New !
1 Jag Brush TM for rods
in blister pack
Patent Pending in USA and other
countries
|
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Package
Type
poly with HH
|
Material
|
6017
|
17 to 20
4 to 5 mm
|
200
|
triangle
|
1.4
|
yes
|
3" by 5"
|
100%
cotton
flannel
|
6022
|
22 to 27
5 to 7 mm
|
200
|
triangle
|
1.9
|
yes
|
3" by 5"
|
6028
|
27 to 35
7 to 9 mm
|
120
|
triangle
|
2.875
|
yes
|
4" by 6"
|
6038
|
35 to 50
9 to 12.5 mm
|
80
|
triangle
|
3.8
|
yes
|
6" by 6"
|
6012
|
50 to 58
20 to 12 gauge
|
60
|
triangle
|
4.6
|
no
|
6" by 6"
|
|
Model #
|
Caliber
|
Thread
|
# of
Brushes
|
Bristles
|
Brush
Length
|
Package
Type
|
4917 P
|
.17--18, 4.85 mm
|
5-40
|
1
|
Phosphor
Bronze
|
2.5 inches
|
blister pack
|
4920 P
|
.20--21, 5--5.45
|
5-40
|
1
|
4922 P
|
.22--23, 5.56 mm
|
8-32
|
1
|
4924 P
|
.240--.246, 6 mm
|
8-32
|
1
|
4926 P
|
.25--26, 6.5 mm
|
8-32
|
1
|
4927 P
|
.270, 7 mm
|
8-32
|
1
|
4930 P
|
.27--.30, 7.5--7.62
|
8-32
|
1
|
4933 P
|
.338
|
8-32
|
1
|
4935 P
|
.35, 9, 9.3
|
8-32
|
1
|
4937 P
|
.375, 9.4
|
8-32
|
1
|
4945P
|
.44--.46, 11--11.5
|
8-32
|
1
|
4950 P
|
.50
|
8-32
|
1
|
4912 P
|
12 & 10 ga.
|
5/16-27
|
1
|
3 inches
|
4917 N
|
.17--18, 4.85 mm
|
5-40
|
1
|
Nylon
|
2.5 inches
|
blister pack
|
4920 N
|
.20--21, 4.85 mm
|
5-40
|
1
|
4922 N
|
.22--23, 5.56 mm
|
8-32
|
1
|
4924 N
|
.240--.246, 6 mm
|
8-32
|
1
|
4926 N
|
.25--26, 6.5 mm
|
8-32
|
1
|
4927 N
|
.270, 7 mm
|
8-32
|
1
|
4930 N
|
.30--31, 7.5--7.62
|
8-32
|
1
|
4933 N
|
.338
|
8-32
|
1
|
4935 N
|
.35, 9, 9.3
|
8-32
|
1
|
4937 N
|
.375, 9.4
|
8-32
|
1
|
4945N
|
.44--.46, 11--11.5
|
8-32
|
1
|
4950N
|
.50
|
8-32
|
1
|
|
Model #
|
Caliber
|
Thread
|
# of
Brushes
|
Bristles
|
Brush
Length
|
Package
Type
|
7022 P
|
.22--23
|
8-32
|
1
|
Phosphor
Bronze
|
pistol
|
tube
with HH
|
7025 P
|
.25
|
8-32
|
1
|
7035P
|
.33--.35, 9 mm
|
8-32
|
1
|
7040 P
|
.39--.43
|
8-32
|
1
|
7045 P
|
.44--.47
|
8-32
|
1
|
9622 P
|
.22--23, 5.56 mm
|
8-32
|
1
|
rifle
|
9630 P
|
.27--.30, 7-8 mm
|
8-32
|
1
|
9620 P
|
20 ga.
|
5/16-27
|
1
|
shotgun
|
9612 P
|
12 & 10 ga.
|
5/16-27
|
1
|
9622 N
|
.22--23, 5.56 mm
|
8-32
|
1
|
Nylon
|
rifle
|
clamshell
with HH and
heat sealed
|
9630N
|
.27--.30, 7-8 mm
|
8-32
|
1
|
7035 N
|
.36--.39
|
8-32
|
1
|
pistol
|
7045 N
|
.44--.47
|
8-32
|
1
|
|
Standard one-purpose bore brushes
inside clear plastic tubes.
Model Number
|
Bottle
|
Cap
|
Volume
|
7192
|
Fluorinated LDPE
black
|
Long neck and wrapped by foil tape
|
1/3 ounce
sample
|
7168
|
PET white
|
Push-down safety and foil-lined
|
5.3 ounces
|
|
Forms a barrier between moving parts, and the
medium-high viscosity oil is synthesized from
plants. Higher temperature stability than oils based
on petroleum.
|
Pre-cut cotton flannel swabs have sizes that range in
inches from 1x2 to 2x3 to 3x5 to 4x8. The pack's 0.30-lb
weight is equivalent to 150 to 225 shotgun 3x3 patches,
where the exact number depends on fabric density.
|
Model
Number
|
Bottle
|
Cap
|
Volume
|
7295
|
HDPE
white
|
Screw on
|
6 ml sample
|
7237
|
HDPE
silver
|
Screw on with folding nipple
|
2.25 ounces
|
|
Model
Number
|
Package
Type
|
Content
|
Weight
|
3392
|
6 x 10 poly
|
Pre-cut cotton flannel swabs
|
0.30 lbs
|
|
7192
7168
7237
100% cotton-flannel square patches are the
standard economical choice. Patches are
made from 175 mil cotton flannel that is white
(aka bleached) and napped. All flannel is USA
made, and it is soft and highly absorbent.
|
New !
Square Patches
in regular poly bags
|
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Material
|
Package
Type
|
6018
|
17 to 22
4 to 5 mm
|
1000
|
triangle
|
1.4
|
yes
|
Cotton
Flannel
|
large
poly bag
with HH
|
6023
|
22 to 27
5 to 7 mm
|
1000
|
triangle
|
1.9
|
yes
|
6029
|
27 to 35
7 to 9 mm
|
800
|
triangle
|
2.875
|
yes
|
6039
|
35 to 50
9 to 12.5 mm
|
500
|
triangle
|
3.8
|
yes
|
6013
|
50 to 58
20 to 12 gauge
|
400
|
triangle
|
4.6
|
no
|
|
New !
Square Patches
in bulk poly bags
|
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Package
Type
poly with HH
|
Material
|
7517
|
17 to 20
4 to 5 mm
|
200
|
square
|
0.75
|
no
|
3" by 5"
|
100%
cotton
flannel
|
7522
|
22 to 27
5 to 7 mm
|
200
|
square
|
1.0
|
no
|
3" by 5"
|
7530
|
30 to 338
7.62 to 8.5 mm
|
120
|
square
|
1.75
|
no
|
4" by 6"
|
7536
|
35 to 45
9 to 11.5 mm
|
80
|
square
|
2.25
|
no
|
4" by 6"
|
7512
|
45 to 50
20 to 12 gauge
|
60
|
square
|
3.0
|
no
|
4" by 6"
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Package
Type
|
Material
|
7518
|
17 to 20
4 to 5 mm
|
1000
|
square
|
0.75
|
no
|
bulk poly
with
HH
|
100%
cotton
flannel
|
7523
|
22 to 27
5 to 7 mm
|
1000
|
square
|
1.0
|
no
|
7531
|
30 to 338
7.62 to 8.5 mm
|
800
|
square
|
1.75
|
no
|
7539
|
35 to 45
9 to 11.5 mm
|
500
|
square
|
2.25
|
no
|
7513
|
45 to 50
20 to 12 gauge
|
400
|
square
|
3.0
|
no
|
|
New !
Triangle Patches TM
regular clamshells
Patent Pending in USA and other
countries
|
|
|
New !
Triangle Patches TM
bulk clamshells
Patent Pending in USA and other
countries
|
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Package
Type
|
Material
|
1917
|
17 to 20
4 to 5 mm
|
480
|
triangle
|
1.4
|
yes
|
clamshell
with
HH
|
100%
Cotton
Flannel
|
1922
|
22 to 27
5 to 7 mm
|
360
|
triangle
|
1.9
|
yes
|
1930
|
27 to 35
7 to 9 mm
|
300
|
triangle
|
2.875
|
yes
|
1936
|
35 to 50
9 to 12.5 mm
|
100
|
triangle
|
3.8
|
yes
|
1912
|
50 to 58
20 to 12 gauge
|
160
|
triangle
|
4.6
|
no
|
|
Model
#
|
Caliber
|
Qty
|
Shape
|
Side
Length
(inches)
|
Notched
|
Material
|
Package
Type
|
1918
|
17 to 22
4 to 5 mm
|
1000
|
triangle
|
1.4
|
yes
|
Cotton
Flannel
|
clamshell
with
HH
|
1924
|
22 to 27
5 to 7 mm
|
1000
|
triangle
|
1.9
|
yes
|
1931
|
27 to 35
7 to 9 mm
|
800
|
triangle
|
2.875
|
yes
|
1939
|
35 to 50
9 to 11.5 mm
|
400
|
triangle
|
3.8
|
yes
|
1914
|
50 to 58
20 to 12 gauge
|
320
|
triangle
|
4.6
|
no
|
|
Instructions and
benefits
on the reverse
side.
Distributors. Dealers, who do not want to order direct, should tell their distributors to carry our
products. Our current list is at Rigel's list of distributors.
Your customers' eyes are drawn to the shape
of our premium gun-cleaning patch, the
Triangle Patch TM, and it is offered inside
clamshells so that they can see them clearly.
Patches are made from 175 mil cotton
flannel that is white (aka bleached) and
napped. All flannel is USA made, and it is
soft and highly absorbent. Patented notches
allow patch to fit any jag/bore in the range
listed for the patch.
|
Product Guide. Triangle Patches tm and Jag Brushes tm sell well on store shelves as SKU
4900's, 5600's, and 6000's. 1900's have not been tested yet, but we expect the increased visibility
they give to patches will make them do well even though clamshells make the patch's unit cost a little
higher. 4900's are now in blister packs.
TM
pistol
rifle
shot gun
Point-of-Purchase rack is welded wire, and it is made in
the USA. Has a sign holder at the top. We sell it to
dealers at cost, or we "eat" the cost to promote our
products.
|
Model
Number
|
Type
|
Capacity
|
POP Rack
|
rotates and two tiers
|
Each tier holds 30 @ 4900's or
24 @ 6000's.
|
|
Four-color printed art boards are free. Black
paper clips are used as an option to attach
them back-to-back. Be sure to ask if you
want them.
|
Model
Number
|
Dimensions
|
Paper
Type
|
Art Board
Triangle Patch
tm
|
8.5 x 11
|
Card Stock
|
Art Board Jag
Brush tm
|
|
New !
1 Jag Brush TM for cables
in blister pack
Patent Pending in USA and other
countries
|
|
|
The two radial diameters and loop at the end
makes it a three-action bore brush. The smaller
diameter pushes the cotton patches tighter to the
bore wall than done by a sub-caliber brush. At the
same time, the larger diameter brushes the bore
wall. Works with any patch shape.
The artwork on the front, to the right of the brush,
attracts the eye to the new concept.
Model #
|
Caliber
|
Thread
|
# of
Brushes
|
Bristles
|
Brush
Length
|
Package
Type
|
6522 P
|
.22--23, 5.56
|
8-32
|
1
|
Phosphor
Bronze
|
3.0 inches
|
twist tube
with
hang-hole tab
|
6530 P
|
.30--31, 7.5--7.62
|
8-32
|
1
|
6522 N
|
.22--23, 5.56
|
8-32
|
1
|
Nylon
|
6530 N
|
.30--31, 7.5--7.62
|
8-32
|
1
|
|
